Modifier Settings Guide

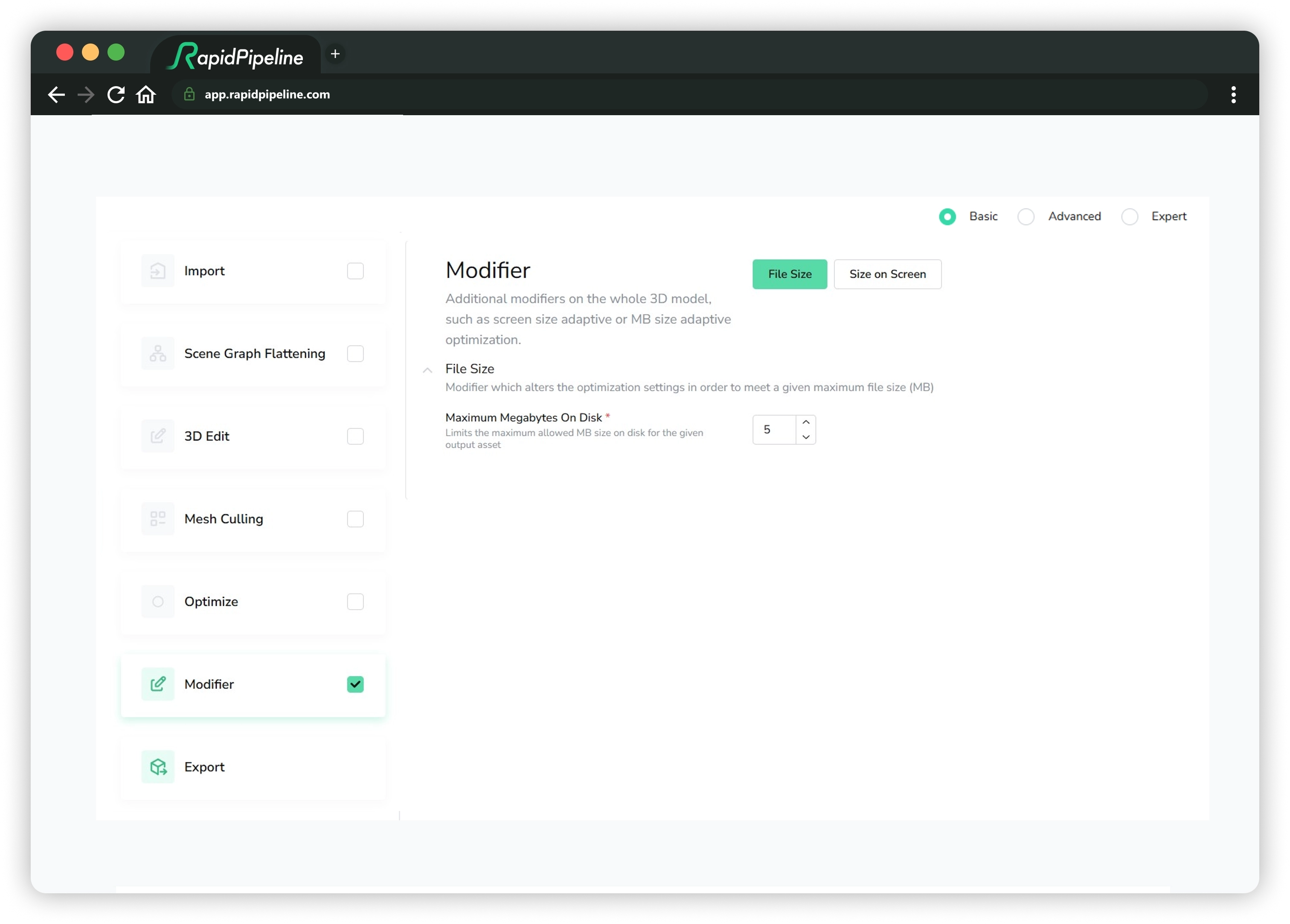

File Size Target​

Modifier which alters the optimization settings in order to meet a given maximum file size (MB).

Maximum Megabytes on Disk​

Limits the maximum allowed MB size on disk for the given output asset. Default is 5MB.

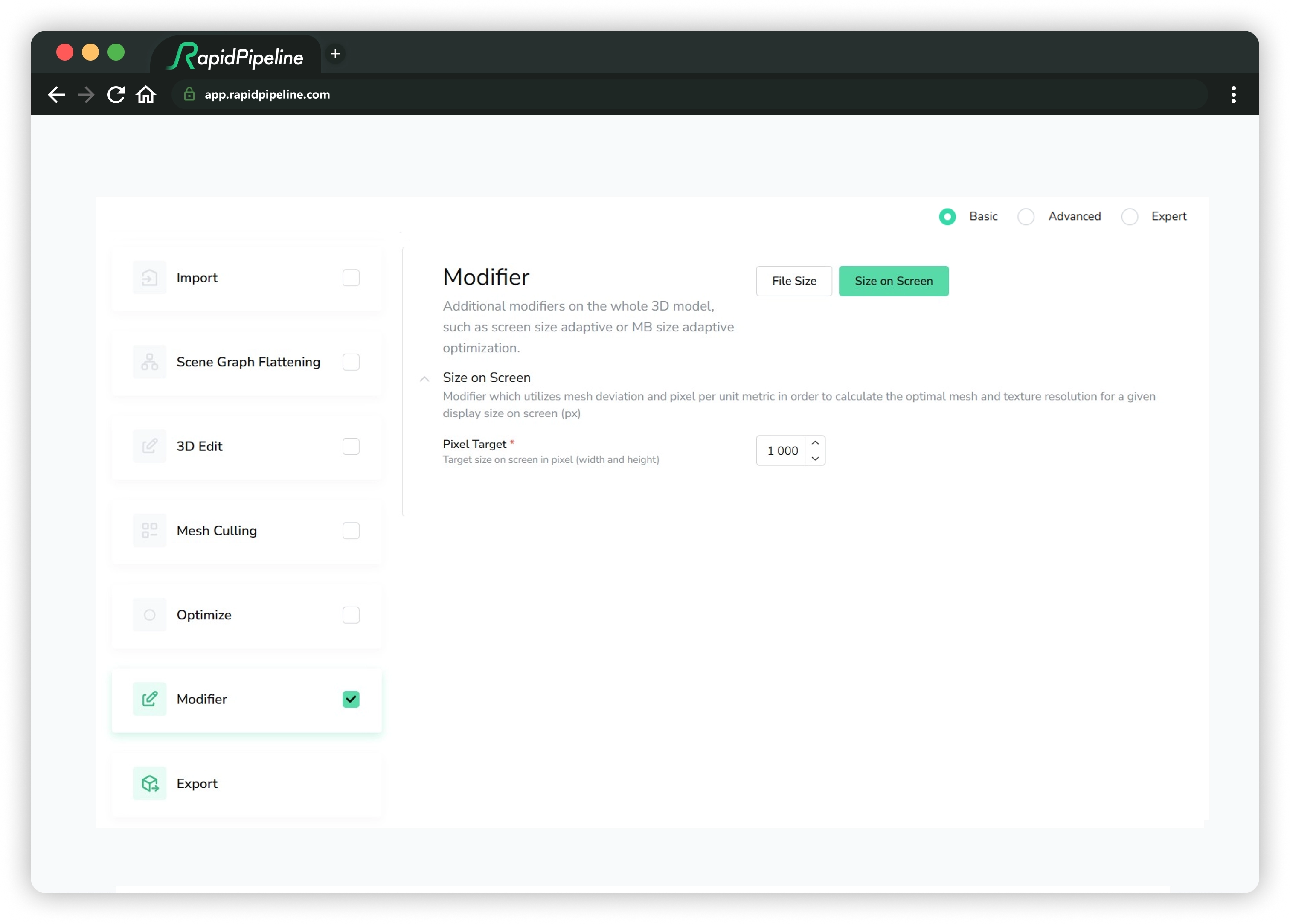

Size on Screen Target​

Calculates optimal mesh and texture resolution for a given display size on screen in pixel. Default is 0 (=off).

It utilizes mesh deviation and a pixel per unit metric in order to calculate the optimal mesh and texture resolution for a given display size on screen in pixels. The pixel target is limited to one value, which is used for width and height of the given size on screen.

This method is optional and can work standalone or in conjunction with other targets.

Pixel Target​

Target size on screen in pixel (width and height). Default is 1024x1024.

Power of Two Resolution​

Ensures that textures have power of two dimensions.

Further Documentation​

For the full Documentation on all available data operations commands and system settings, please refer to the CLI Commands Guide and 3D Processor System Schema & Settings.

info

The 3D Processor is available for multiple interfaces:
